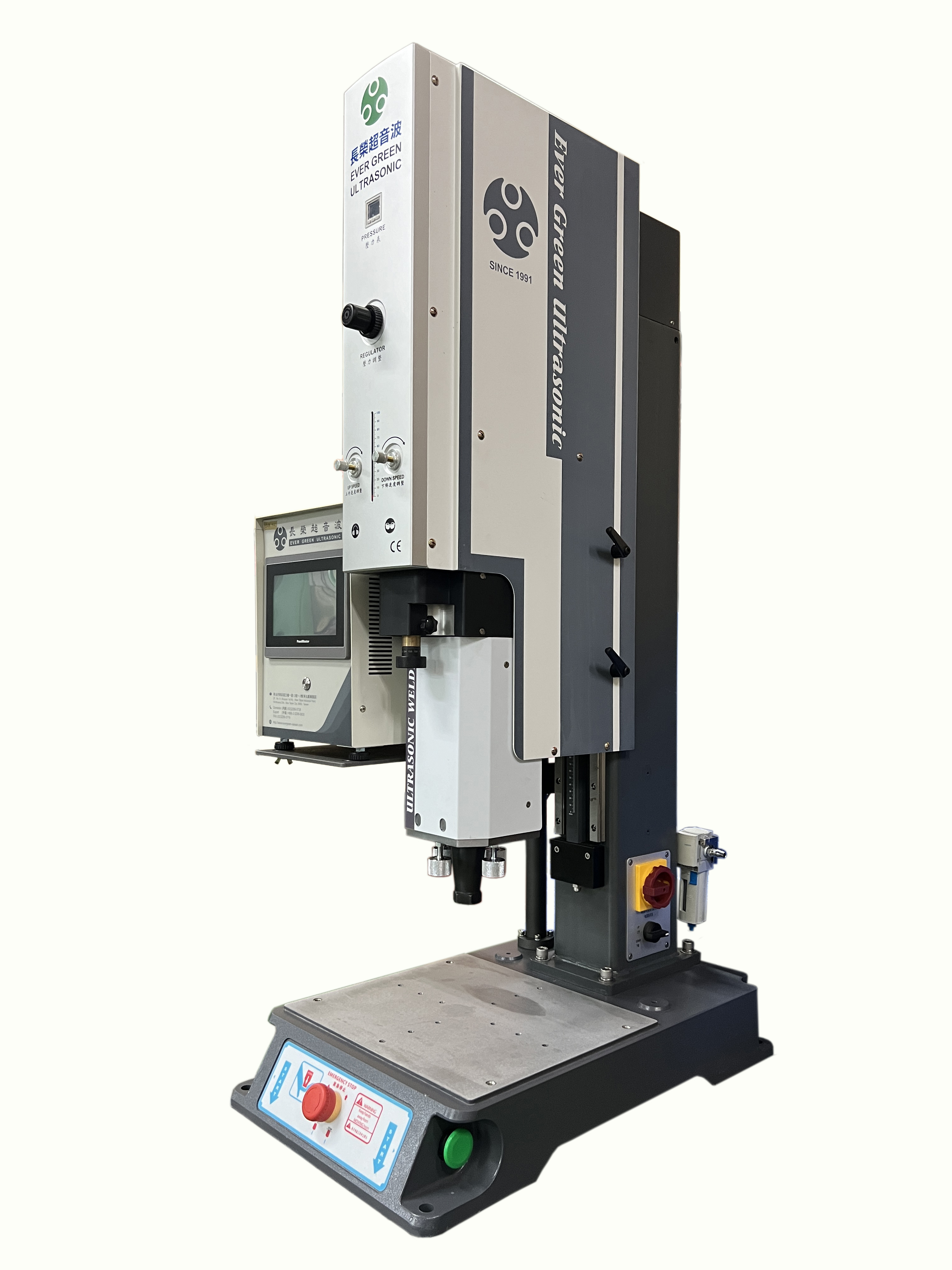

Digital Ultrasonic series
Model:EGW-2025 / EGW-1535
Digital Ultrasonic series
Automatic Frequency Tracking of Digital Ultrasonic series.
Use high performance Microprocessor to achieve control by digitalization. All parameter of welding control managed by microcomputer and plus intellectual frequency control system to eliminate inconvenience occurred by manual.
Auto-ultrasonic inspection can tracking the best resonance all the time. Machine can make adjustment automatically for ultrasonic and follow frequency changing by temperature of mold to keep the suitable temperature for transducer set.
| Model | EGW-2025 | EGW-1535 | EGW-1548 | ||
|---|---|---|---|---|---|
| Frequency | 20KHZ | 15KHZ | 15KHZ | ||
| Output Power | 2500W | 3500W | 4800W | ||
| Welding Capability | 140 ~160 m/m φ | 180 ~ 230 m/m φ | 230 ~ 280 m/m φ | ||
| Dimension | 680 x 530 x 1568 mm | 680 x 530 x 1568 mm | 750 x 940 x 1980 mm | ||
| Net Weight | 120 kg | 120 kg | 300 kg | ||
| Line Source | 220V 10A 1P | 220V 10A 1P | 220V 10A 1P |
