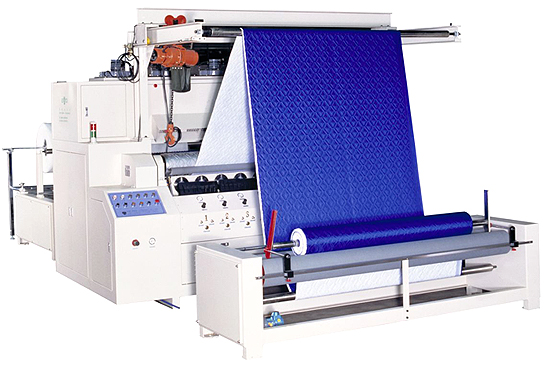

Ultrasonic Quilting Machine

Model:EGQ-6430 / EGQ-8830

The ultrasonic quilting machine offers high speed and high productivity, strong welding strength, stable quality. The application are in mattress, multicover, bedcover, bed sheet...etc.




Features:



  • Feature

    • Adopt ultrasonic technology to weld and stitch the fabric together without needle and thread.

    • High speed and high productivity, strong welding strength, stable quality.

    • Different rollers and patterns can be designed according to different material and different products requirements.

    • Special structured design, easy adjustment and easy roller replacement.

    • Humanity control design, easy to operate and understand.

    • Due to no needle oleos no air into the fabric, better than warming medium (e.g. Blanket, jacket...etc.).

    • Fully automatic or semi-automatic control panel function.



  • Applications

    • Mattress, multicover, bedcover, bed sheet, blanket, seat cushion, winter jacket, robes, polo cases, apron, sleeping bag, show jacket, car seat cover.




Add to Inquiry
  • Print
Category: Textile
See more complete detail
Model EGQ-6430 EGQ-8830
Layer (s) 1-3 1-3
Max. Working Width 60" 84"
Var. Working Speed 0-10 m/min 0-10 m/min
Elec. Source 220V 3P 25KW / 380V 3P 25KW 220V 3P 25KW / 380V 3P 25KW
Net Weight 2,200 kg 3,000 kg
Dimension 6,070 x 2,800 x 2,450 mm 6,070 x 3,320 x 2,450 mm
