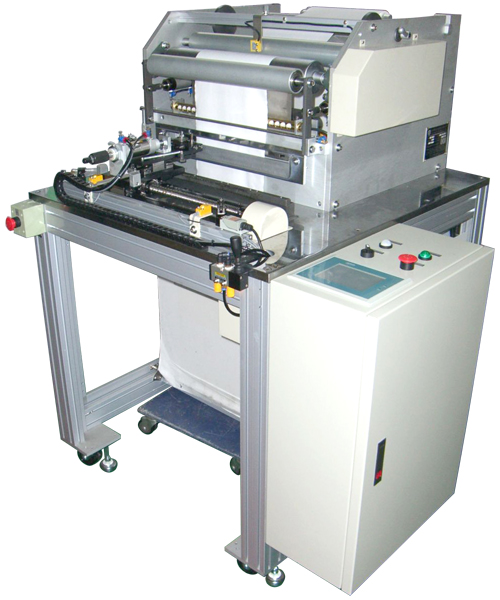

Micro Wiper Ultrasonic Slitting Machine

Model:EGF-2014T

The micro wiper Ultrasonic Slitting Machine is for the superior quality wiper slitting and cutting, to be used in clean room. And it can continuously operate under long period with high production efficiency.




Features:



  • Ultrasonic Slitting Machine Features

    • For the superior quality wiper slitting and cutting, to be used in clean room.

    • Special roller blade and ultrasonic design, stable quality, and precise cutting edge.

    • Can continuously operate under long period with high production efficiency.

    • Humanity control design, easy operation.

    • Non-material stop device, easy connecting feeding design.




Add to Inquiry
  • Print
Category： Customized automatic products
See more complete detail
Ultrasonic Slitting Machine
Model		 EGF-2014T
Dimension 1,800 x 1,000 x 1,600 mm
Frequency 20KHZ
Capacity 15 pcs/min
Max. Working Width 9" x 9"
Elec. Source 220V AC 3P 5Kw
Output Power 1,400W
Motor 90W x 2 / 40W x 1
Air Requirement 3 HP
Net Weight 270 kg
