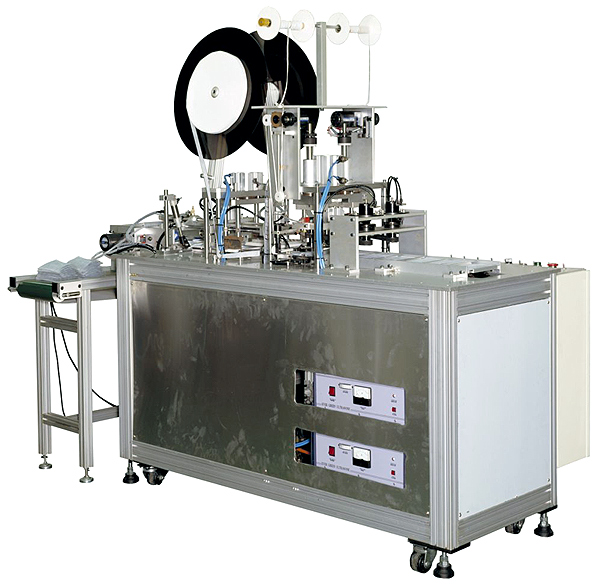

Ear-Loop Sealing Machine

Model:EGN-2014C

The Ear-Loop sealing machine is for multi-layer non-woven mask production and offers high productivity, stable quality, and easy adjustment.




Specifications:



  • Require material

    • Elastic band

      • Length: 180mm x 2 pcs



    • Side sealing

      • Width: 20mm

      • Length: 80mm

      • Spec.: 20-25g





  • Require operator: 2 person/machine (one is for feeding, the other one is for packaged)





Features:



  • Features

    • For multi-layer non-woven mask production.

    • Feeding and production automatically.

    • Special roller and roller blade design, long-wearing, longer life.

    • High productivity, stable quality, easy adjustment.




Add to Inquiry
  • Print
Category： Non-Woven
See more complete detail
Model EGN-2014C
Dimension 4,000 x 900 x 1,600 mm
Frequency 20KHZ
Capacity 20 ~ 30 pcs/min
Max. Working Width 90*175 / 95*175 mm
Elec. Source 220VAC 1Ø 15A
Output Power 1,400W
Motor 1/2 HP
Air Requirement 1 HP
Net Weight 340 kg
