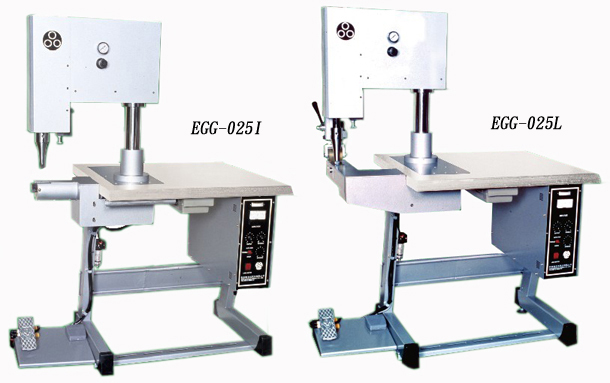

Ultrasonic Sewfree Machine - Surgical Gown
Model:EGG-025I / EGG-025L
The ultrasonic surgical gown sewing machine is humanity design, to tally with ergonomics, easy operate, and it may be applied in medical, industry, and automobile...etc.
Features:
- Features of ultrasonic sewfree machine
- Use ultrasonic technology to meld and stitch the fabric or non-woven together without needle and thread.
- To tally with the requirements of waterproof, airtight and against chemical.
- Humanity design, to tally with ergonomics, easy operate.
- Can process with straight and curve welding.
- Roller design, add more strength and beautiful look to the product.
- With feeding design, the ultrasonic sewfree machine is able to control all product with identical quality.
- Special structure design will be weld the sleeve easily.
- Special "I-type" seal arm design more available for fold round sealing.
- Special "L-type" seal arm design more function for overlapped sealing.
- Application
- Medical: Surgical own, cap, aspirator, pillow case.
- Industry: Duster coat, Anti-Static electricity clothes, filter net and head wrap.
- Automobile: Seat cover, headrest(cover).
- Others: Suit cover, shower cap.
| Model | EGG-025I | EGG-025L |
|---|---|---|
| Ultrasonic Frequency | 20 kHz | 20 kHz |
| Output Power | 1,400 W | 1,400 W |
| Speed | 0-18 m/min | 0-18 m/min |
| Roller Spec. | (Dia.) 51, (W) 18 mm | (Dia.) 51, (W) 18 mm |
| Seal Arm | (Min. Dia.) 95 mm | (Min. Dia.) 95 mm |
| Elec. Source | 220V AC 1P | 220V AC 1P |
| Net Weight | 120 kg | 120 kg |
| Dimensions | 1,050 x 650 x 1,300 mm | 1,050 x 650 x 1,300 mm |
